EPS Volume Reduction Machine—Mini MelterRE-E201
Ideal for self-treatment of styrofoam.
Compact and energy-saving type volume reducer.
Object to be processed
-
EPS
Expanded
polystyrene -
PSP
Polystyrene
paper -
XPS
Extruded
polystyrene -
EPP
Expanded
polypropylene -
EPE
Expanded
polyethylene
Recycling Process

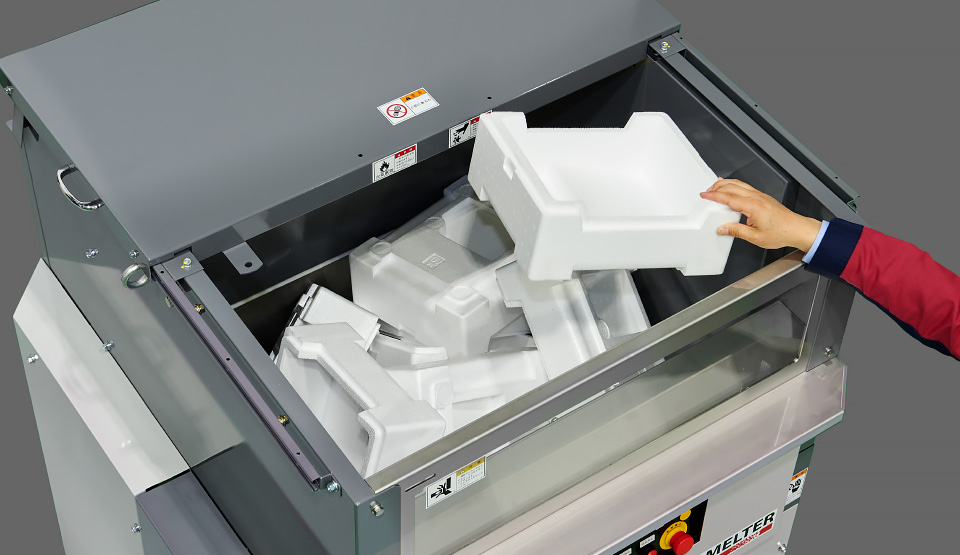

1
Feeding of Raw Materials
The raw materials to be processed are fed into the hopper. The capacity is 20 kg/h, and the feeding method can be selected to suit the working system.
2

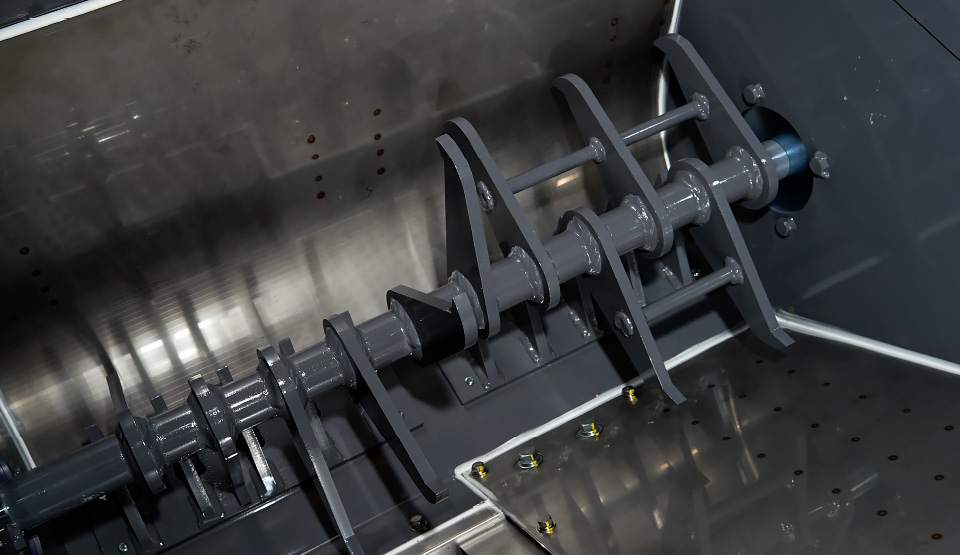

Crushing
The styrofoam is crushed into uniformly small pieces to facilitate volume reduction.

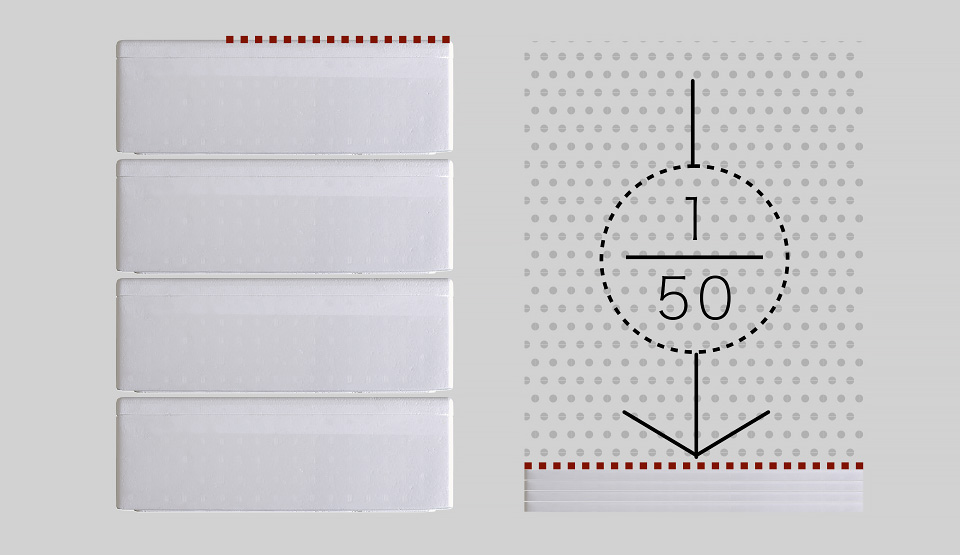

3
Volume Reduction
The finely crushed styrofoam is melted with an electric heater to remove air and reduce the volume to about 1/50 (depends on the raw material's foaming ratio).
4

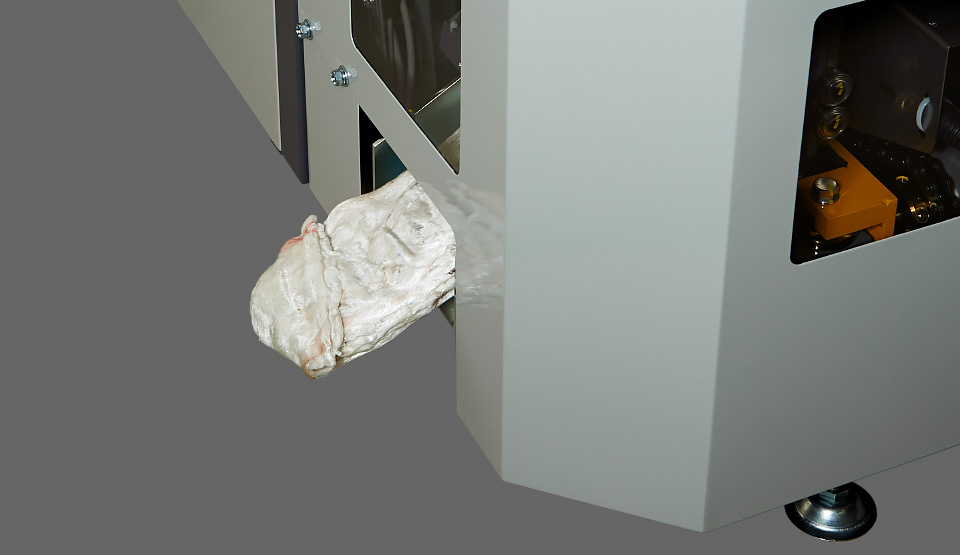

Molding & Cutting
The reduced volume of styrofoam is formed into ingots and then automatically cut to a specified length before being discharged.
RE-E201 Product Video
Why Yamamoto?
We're all about making work
safe and comfortable.
While our machines provide unrivalled performance
and create the
highest quality ingots,
our real focus is on workplace safety, comfort, and ease
of use.
Easy & Simple
Operation
Our machines are designed to be easy for anyone to use. For regular operation, simply touch a button and watch as ingots are automatically formed and cut to the specified size.
Reduces
Work-Related Stress
The warm-up time is only 5 minutes. There is no need to keep the operator waiting before starting operation or resuming after a break. Air cooling is standard, so there is no need to cool the ingot by immersion in water.
Consideration for
the Working Environment
The small heat source makes it difficult for odours to diffuse, and an activated carbon deodoriser is fitted as standard. This promotes a pleasant working environment.

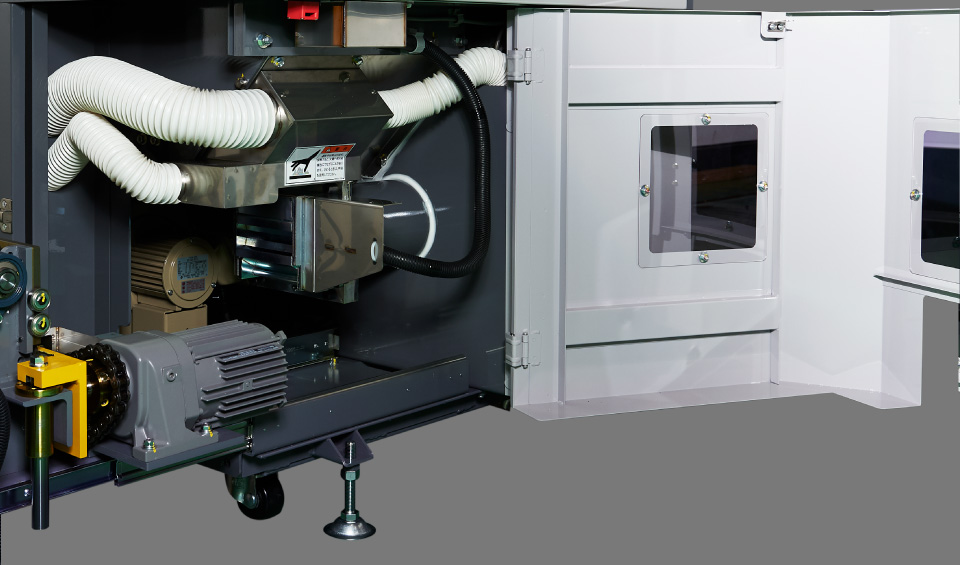

Designed for
Safety
Dangerous parts, such as chains and blades, are covered to prevent access. A safety switch prevents the machine from being started when the cover is open.
Configuration
The Mini-Melter RE-E201 is
a compact machine with a volume reduction
capability of 20 kg per hour.
It is designed for safe and comfortable operation.
Click on a part's name for details.
1
Feeding Hopper
The wide hopper is large enough to hold 5–10 fish boxes. The continuous feeding system keeps the work area clean and saves space.
2
Crushing Section
The crushing blade is our proprietary design and crushes all kinds of styrofoam such as fish boxes, cushioning material, and trays.

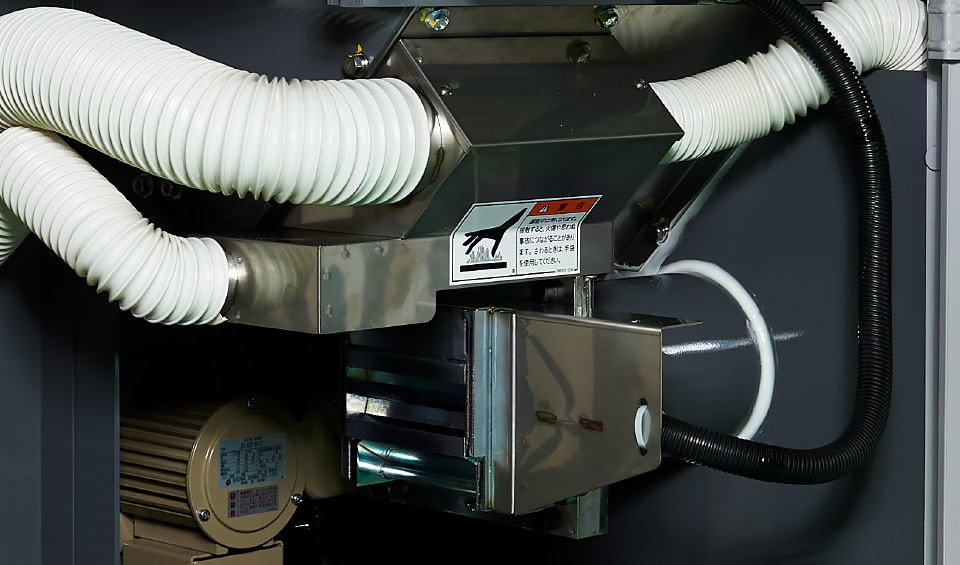

3
Electric Heater
Warm-up operation time is only 5 minutes.
Due to the low temperature
of 170°C and rapid volume reduction, the ingot is of good quality with
little deterioration of physical properties.
4
Molding Section
The foamed polystyrene melted from the heater is rolled by the forming rolls and formed into the specified shape.
5
Cutting Section
The wheel sensor detects the ingot's discharge, and the cutting blade automatically cuts it to a length of approximately 50 cm.
6

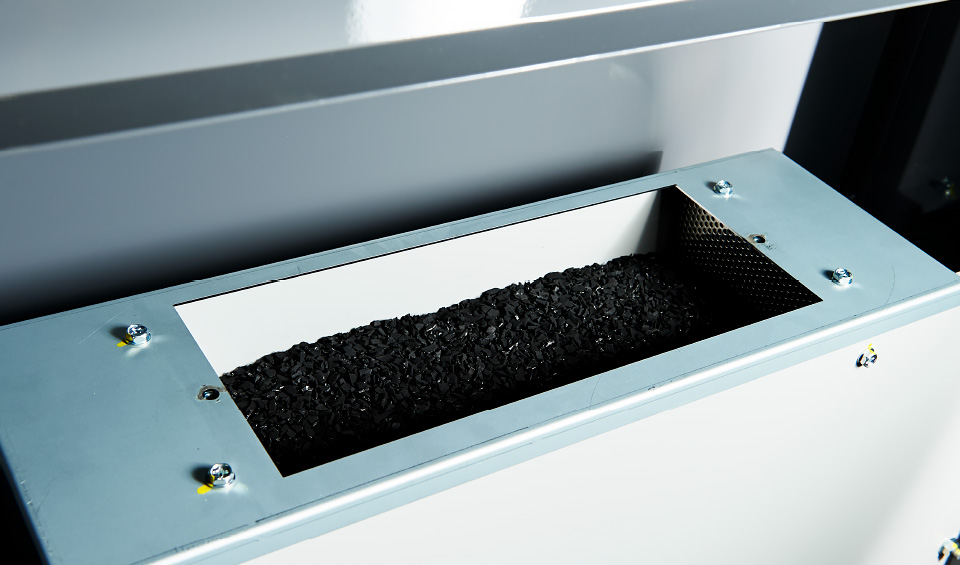

Deodoriser
Odour generated during volume reduction is deodorized by activated carbon adsorption system to promote a comfortable working environment. The exhaust air is used for cooling the ingot surface.

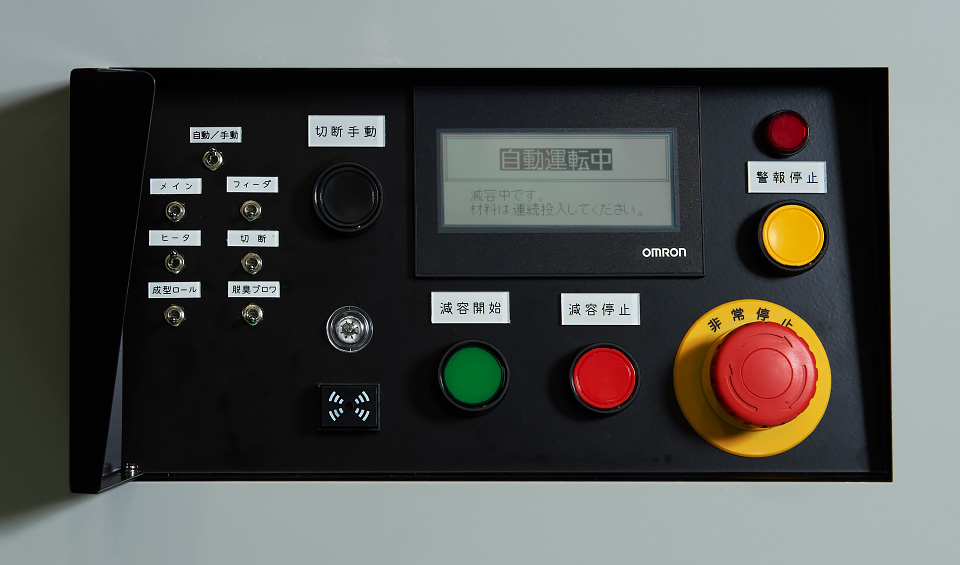

7
Control Panel
Precise and meticulous temperature control is possible. In the event of a problem, the alarm indicator light will light up, and a warning sound will be given. At that time, a message will be displayed on the monitor.
8
Manual Operation Switch
A maintenance switch is located inside the panel.
By switching to
manual operation, the individual motors can be operated separately, e.g.
during maintenance.
Options & Layout Examples

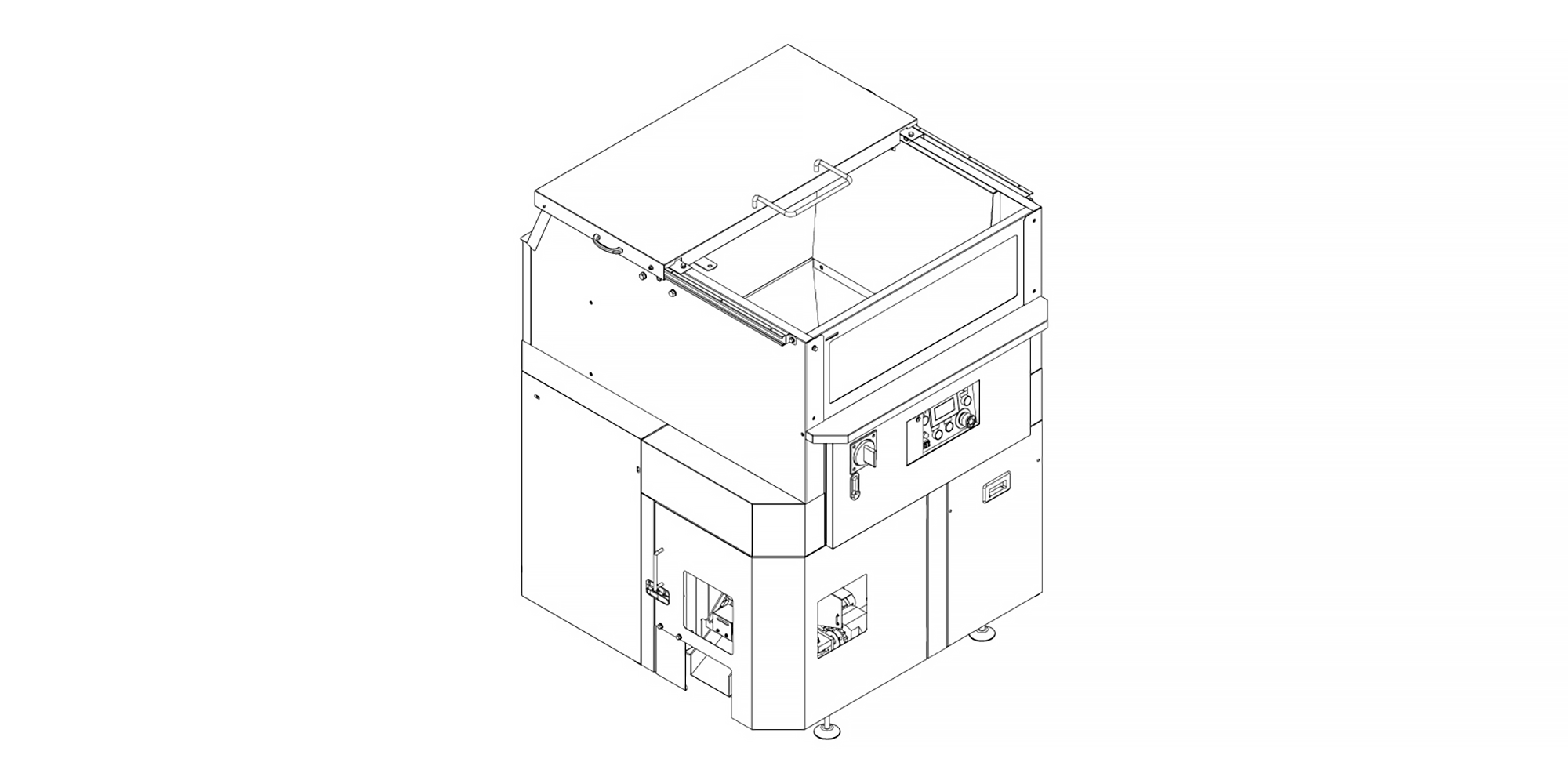

Styrofoam Compactor ［RE-E201］

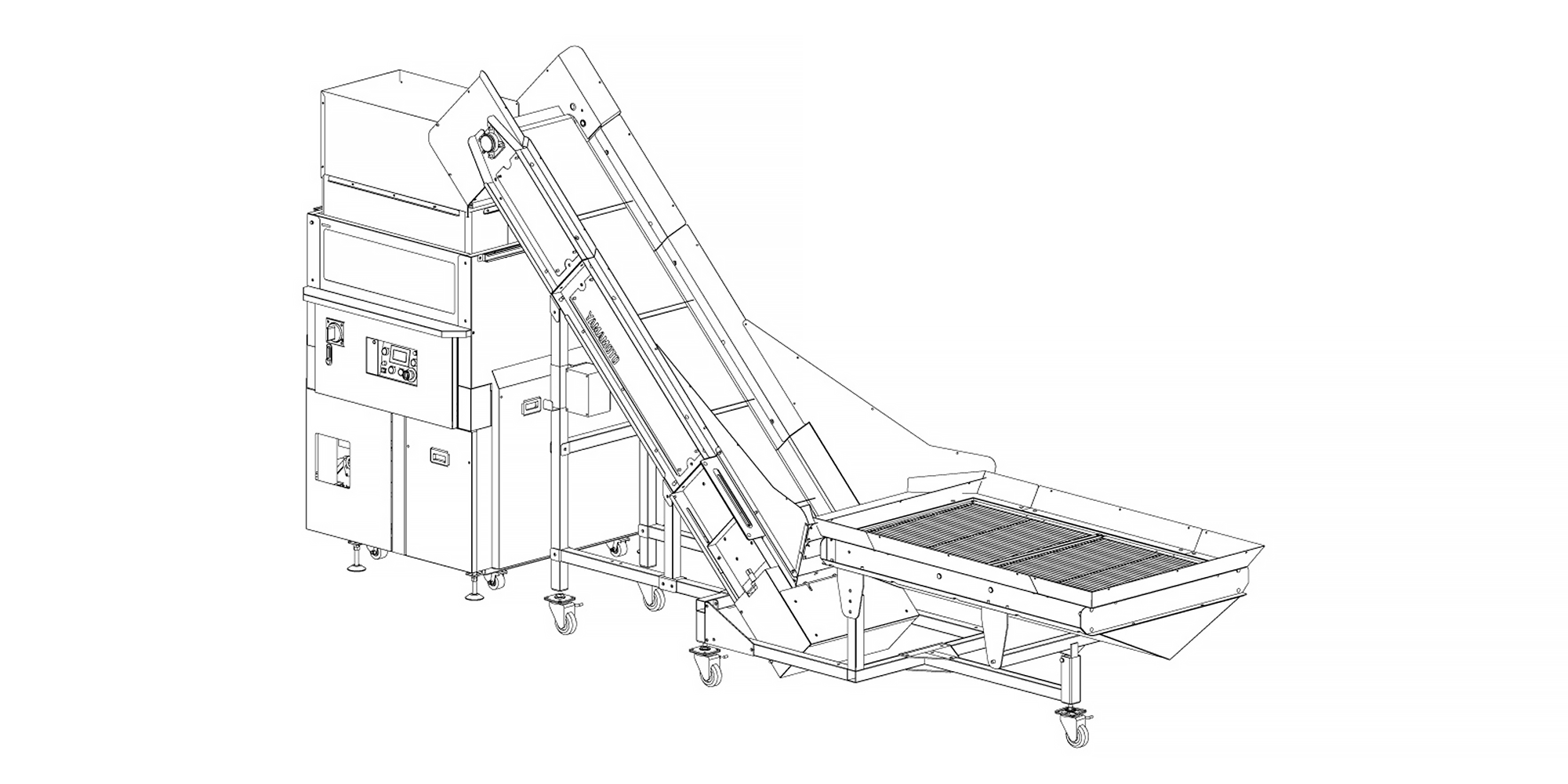

Sorting Table Unit + Conveyor Belt ［RE-ST400 + RE-BC400P + RE-E201］
This system can sort and feed materials such as food trays and cushioning materials for home appliances, which are easily contaminated by foreign substances.

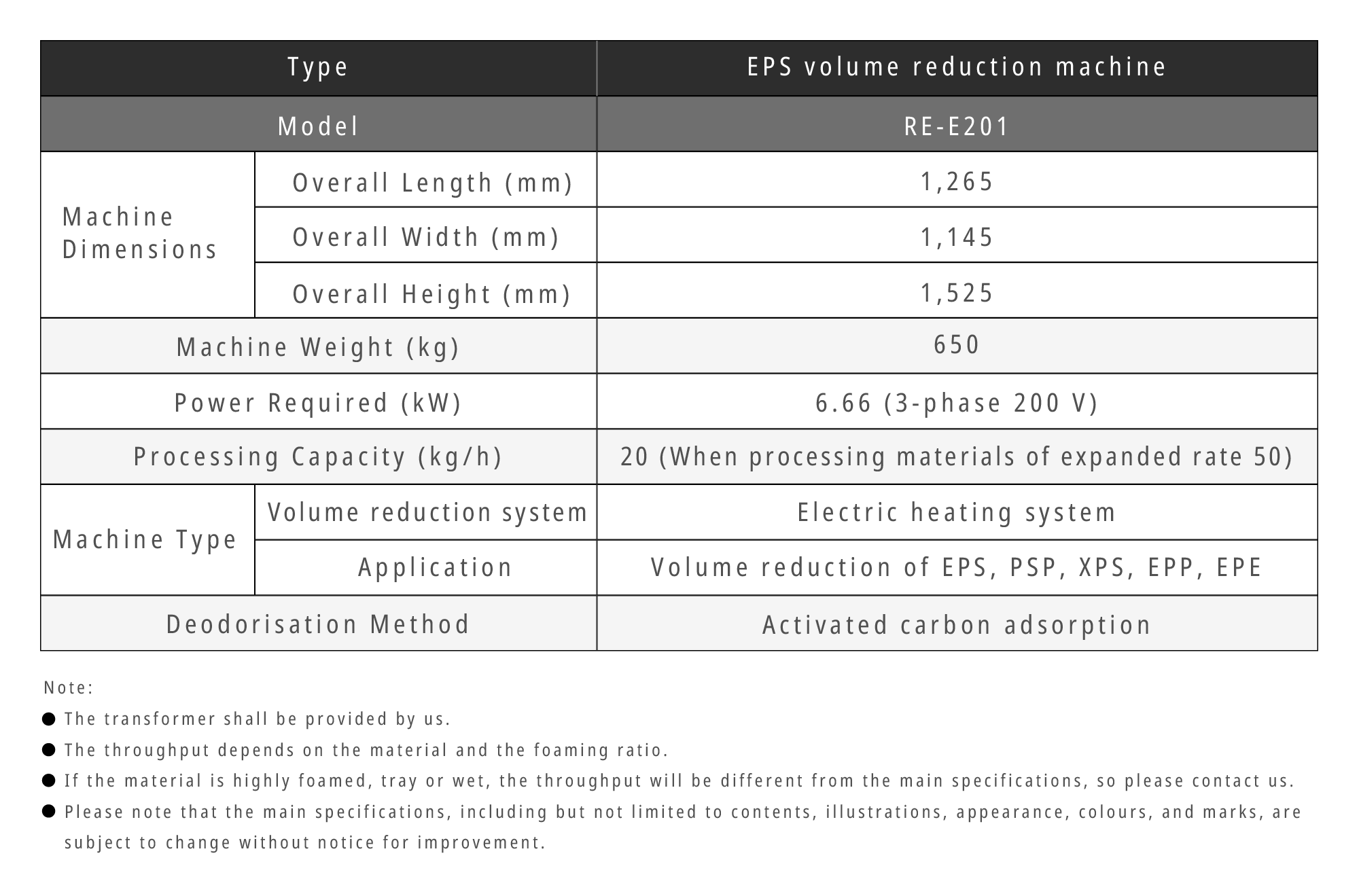

Specifications
